Doppler Smartdop 45 Including 8Mhz Probe

Smartdop 45 Vascular Ultrasound Bi-Directional Doppler for Peripheral Vascular Procedures, PPG, PV & more. Handheld Compact, LCD Display, Waveform Memory

Bi-Directional Doppler in a convenient hand-held size, with capabilities normally found only in larger systems. It is fully customisable so you can choose only the options & accessories required for your healthcare facility.

Clinical Applications:
Peripheral vascular procedures - Determination and monitoring of foetal heart rate - Venous reflux assessment (PPG) - Maximum Venous Outflow (PV) - Blood pressure segmental studies - Penile & digit systolic pressures - Pedal pulse checks

Features:

• Prints high resolution waveforms & numerical data in real-time.
• Automatic gain & baseline control, no manual adjustment necessary.
• 30 waveform memory. Save for viewing or printing later. You can also download to Smart-V-Link Vascular software for electronic reporting.
• Various mode settings are available for optimal measurement.
• Transfers waveforms and numerical data to computer via USB interface.
• PC Keyboard Connector (PS/2)for easy entry of patient data.

Specifications:

• Power: DC 12V
• Automatic shut off: No signal - 2mins, Freeze - 5 mins, Other - 15mins
• Waveform memory: 30 waveforms
• Speaker output: 200 mW or more
• Frequency: 2, 4, 5, 8, 10 MHz
• LCD Display: 128 x 64 dots
• Paper: 58 x 25mm rolls
• Print Speed: 25mm/sec
• Weight: 500g
• External outputs: Headset, USB port & PC keyboard
• UOM: Each

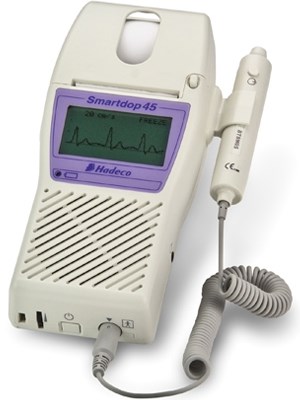

• Image is sample of product
