SANGOFIX RV T-PIECE SL 100's

SANGOFIX RV T-PIECE SL 100's

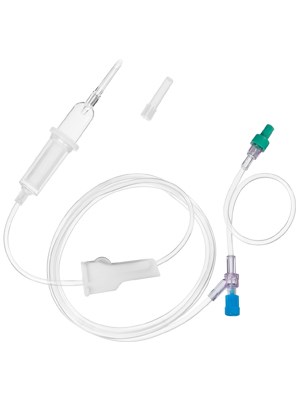

Blood administration set- non-vented

• Non-vented blood administration set for the administration of blood and blood components stored in flexible bags for gravity administration.

Advantages: Blood Filter 200µm / 11cm2

• Blood filter with 11 cm2 surface area helps to prevent particulate contamination by retaining particles >200 μm and consequently helps to avoid transfusion of blood clots and cellular debris resulting from storage
• During a laboratory test, Sangofix® with a filter surface of 11 cm2 was used to successively administer 10 erythrocyte concentrates while providing a higher flow rate than required by ISO 1135-4
• Hanging filter basket arrangement for soft impingement of blood drops

Drip chamber:

• Clear, non-vented piercing spike with blunt tip to prevent puncturing of bag
• Fully transparent dome offers visibility for a constant visual monitoring of flow rate
• Elastic pump chamber allows easy and quick set-up of fluid level

Roller clamp:

• Integrated spike protection at roller clamp for disposal
• Parking position to attach the patient connector to roller clamp

Spin-lock connector with PrimeStop

• Protective PrimeStop cap stops blood leaks while priming the set and thus lowers the risk of blood exposure which could lead to microbiological contamination. Lined with a hydrophobic, bacteria-tight membrane, the protective cap stops fluid but allows air to go through. It prevents the escape of any solution or contaminants into the adjacent environment and is thus a closed system referring to NIOSH 2004 definition
• Screw-tight SpinLock^® connector helps to avoid accidental disconnection during transfusion which could lead to microbiological contamination
• Rotating collar of Spin-Lock^® connector prevents twisting of IV line during connection
• Pressure resistant up to 400 mm Hg. (approx. 0.5 bar).
• DEHP-free (Remark: Sangofix® sets with hand pump contain DEHP, ref. 4050192, 4050192H, 4050193, 4050193H)
• Latex-free
