Dosifix® IV Administration Set with Dosage Burette 150mL

The Dosifix® IV administration Set with Dosage Burette contains a metered small-volume chamber designed to limit the amount of solution available to the patient. This is usually for safety, but also as an intermittent infusion of medication that can be admixed immediately before infusion, primarily required for pediatric and neonatal patients.

Dosifix® IV administration Set is suitable for gravity infusions. It has a universal, vented piercing spike and bacteria-tight air vent, and closable with snap cap.

Dosage container 150ml, with fine graduation as well as injection site (latex) for drug addition; austomatic shut-off swim valve to prevent air embolism (latex-free); is flexible and transparent drip chamber with micro dripper 60 drops = 1 ml ± 0.1 ml (aqua dist.); and 15 µm fluid filter as integral part of drip chamber

Other features include:

Two advanced, precise roller clamps, good to control flow rate, comfortable to hold.Spike dock for secure spike discard

Soft, clear PVC tubing with standard lumen 3 x 4.1 mm, standard length 150 cm (total 175 cm), DEHP free plasticizer with well documented safety properties

Pressure resistant max. 400 mm Hg (0.5 bar)

Y-injection site (latex)

Screw tight Luer Lock fitting to prevent accidental disconnection

Specifications:

• Brand: BBraun
• Product: Dosifix® IV administration Set with Dosage Burette (4054504H)
• Size: 150ml, 170cm tubing
• Sterile
• UOM: Each

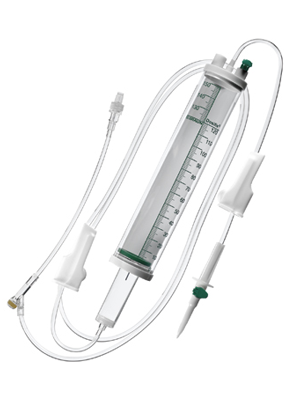

• Image is sample of product
